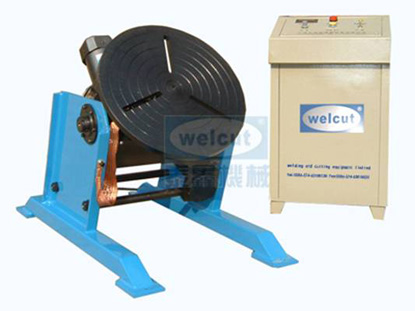

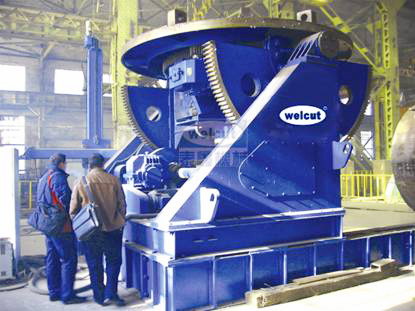

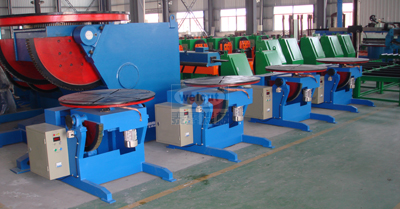

    Name: welding positioner(single seat)
    Introduction:

    welding positioners

    This positioner which has simple structure and high stably is mainly used with SAW machines.

    Table rotating adopts imported transducer to realize stepless regulation, wide speed range and stable operation.

    Table tilting is drived by AC motor with helical-worm reducer and self lock function, realized stable tilting.

    The table is made by precision casting. There is T-type groove and ring type position line, available for locating and clamping work piece.

    Operation is convenient by remote-control pendant.
    Linkage on the control box can control with other welding equipment.

    type Rated loading(kg) Rotating speed(rmp) Tilting speed(rmp) Tilting angle Workpiece dia(mm) Rotating power Tilting power(kw) Speed regulation Max exxentricity(mm) Max gravity(mm)
    HB-01 100 0.4-4 By manual 0-90 400 0.18   AC Frequency conversion stepless speed regulation 100 200
    HB-03 300 0.1-1 By manual 0-90 600 0.18   150 200
    HB-03 300 0.1-1 1 0-90 600 0.18 0.18 150 200
    HB-06 600 0.09-0.9 0.42 0-90 1000 0.75 0.75 150 200
    HB-12 1200 0.05-0.5 0.4 0-120 1200 1.1 1.1 200 250
    HB-30 3000 0.05-0.5 0.23 0-135 1400 1.1 2.2 200 300
    HB-50 5000 0.05-0.5 0.2 0-135 1500 1.5 3 200 300
    HB-100 10000 0.05-0.5 0.2 0-135 2000 3 4 200 400
    HB-150 15000 0.04-0.4 0.15 0-135 2200 4 7.5 200 500
    HB-200 20000 0.04-0.4 0.15 45-90 2500 5.5 11 200 600
    HB-300 30000 0.03-0.3 0.15 45-90 3000 5.5 15 200 650
    HB-500 5000 0.02-0.2 0.06 45-90 4000 11 18.5 200 800
