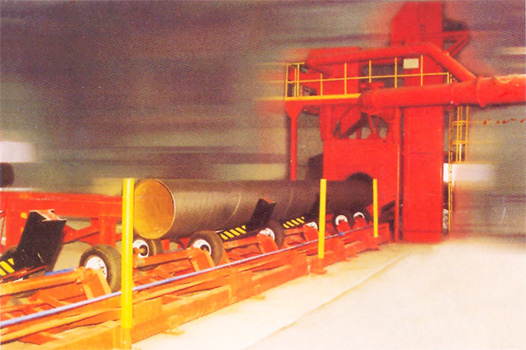

Shot blasting machine
Impeller head locate at multi angle, which is the high efficiency blasting wheels, shot blasting with high-speed thick blasting pills and blowing on the surface to have a tridimensional and omnibearing cleaning, to clean away the rusting layer, oxidation layer and other dirty things from surface quickly, to make surface achieve a bright and clean surface and to improve the adhesion force of painting to surface and improve the anti-fatigue force and anti-rust capacity of surface, improve the inherent quality of surface and prolong the lifetime of steel pipe.
Name |
Steel Pipe Surface Shot Blasting Machine |
Steel Pipe Surface Shot Blasting Machine |
Steel Pipe Surface Shot Blasting Machine |
Steel Pipe Surface Shot Blasting Machine |
Model |
Technical Coefficient | |
PG03 |
PG07H |
PG10H |
PG12H |
Size of Workpiece being Cleaned mm |
50-400 |
150-800 |
80-1000 |
100-1200 |
Speed of the Rollgang m/min |
2-8 |
0.5-6 |
0.5-6 |
0.5-6 |
Impeller Head |
Pill Impelling Volume kg/min |
2*280 |
2*360 |
2*280 |
2*320 |
Power KW |
2*15 |
2*30 |
2*22 |
2*22 |
Dust Catcher |
Model |
ZJC-40 |
JZC-48 |
HR-12 |
HR-12 |
Total Wind Volume m3/h |
8000 |
8500 |
9000 |
9000 |
Total Power KW (without Dust Removing System) |
42.6 |
77.77 |
76.57 |
77.77 |
Appearance Dimension (Length*Width*Height)mm |
23810*3065*6500 |
16600*3850*5600 |
16600*4250*5600 |
31420*4700*5120 |
Name |
Steel Pipe Surface Shot Blasting Machine |
Steel Pipe Surface Shot Blasting Machine |
Steel Pipe Surface Shot Blasting Machine |
Cast Pipe Surface Shot Blasting Machine |
Model |
Technical Coefficient | |
PG21H |
PG26H |
PG30 |
PG30H |
Size of Workpiece being Cleaned mm |
800-1800 |
1200-2600 |
1000-3000 |
1200-3000 |
Max Loading of the Trolley t |
|
|
|
10 |
Speed of the Rollgang m/min |
0.5-6 |
0.5-6 |
0.5-6 |
|
Impeller Head |
Pill Impelling Volume kg/min |
2*280 |
2*360 |
2*360 |
6*250 |
Power KW |
2*22 |
2*30 |
2*30 |
6*18.5 |
Dust Catcher |
Model |
HR-16 |
HR-16 |
HR-24 |
HR-32 |
Total Wind Volume m3/h |
12000 |
12000 |
18000 |
24000 |
Total Power KW (without Dust Removing System) |
90.4 |
104.6 |
106.6 |
135.5 |
Appearance Dimension (Length*Width*Height)mm |
35200*5250*5200 |
35200*5860*5900 |
35200*6240*6300 |
18750*6645*11300 |
The technical coefficients of the forms are only for indication.The details of the coefficient are subject to the technical projects.
|
