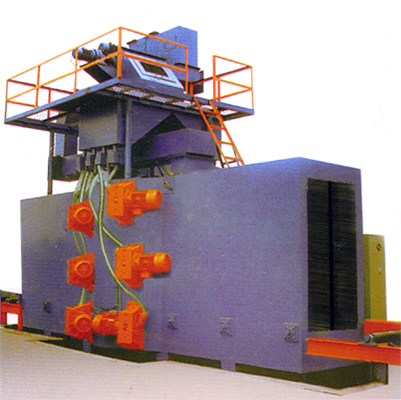

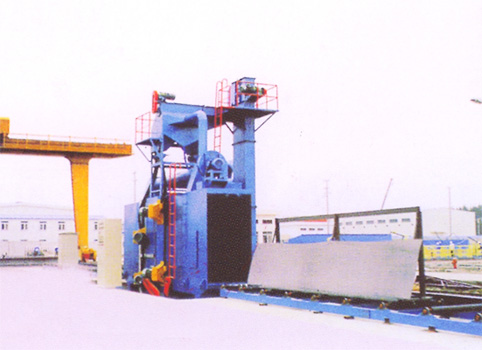

    Name: Pass through type steel structure shot blasting machine
    Introduction:

    shot blasting mahcine

    This series is mainly used in cleaning welding structure, H steel, profiled steel, net structure and steel plate. Impeller head locates at multi angle, which is the high efficiency blastinging wheels, shot blastinging with high-speed thick blastinging pills and blowing on every parts of steel plate to have a tridimensional and omnibearing cleaning on plate, to clean away the rusting layer, welding slag, oxidation layer and other dirty things from steel plates quickly, to make steel plate achieve a bright and clean surface and to improve the adhesion force of painting to steel plate surface and improve the anti-fatigue force and anti-rust capacity of steel plate, improve the inherent quality of steel plate and prolong the lifetime of steel plate. It is the best choice for mesh, steel structure, ship, bridge, engineering machinery, boiler manufacturer and so on.

    Name Pass Through Type Steel Structure Shot Blasting Machine Pass Through Type Steel Structure Shot Blasting Machine Pass Through Type Steel Structure Shot Blasting Machine Pass Through Type Steel Structure Shot Blasting Machine Pass Through Type Steel Structure Shot Blasting Machine
    Model
     Technical Coefficient
    LB05H LB06HA LB08A6 LB08HC LB12HE
    Size of Workpiece being Cleaned  Length mm 6000-12000 6000-12000 6000-12000 6000-12000 6000-12000
     Width mm 500 600 800 800 1200
     Height mm 800 1500 1600 1800 2000
     Working Speed m/min 0.5-1.5 0.5-2 0.5-1.5 0.5-1.5 0.5-2
    Impeller Head  Model XQ02 XQ02 XQ02 XQ02 XQ02
     Quantity 4 8 8 8 8
     Power KW 4*11 8*7.5 8*11 8*11 8*15
     Pill Impelling
     Volume  kg/min
    4*200 8*130 8*200 8*200 8*220
    Dust Catcher  Model HR-12 HR-16 HR-16 HR-16 HR-24
     Total Wind
     Volume  m3/h
    9000 12000 12000 12000 18000
     Power KW 11 22 22 22 22
     Total Power KW 90.9 131.9 149.4 149.4 180.2
     Appearance Dimension
     (Length*Width*Height)mm
    24500*4000*4368 26610*5200*5587 30609.6*4880*5380 30609.6*4880*5380 30260*5660*6500


    Name Pass Through Type Steel Structure Shot Blasting Machine Pass Through Type Steel Structure Shot Blasting Machine Pass Through Type Steel Structure Shot Blasting Machine Pass Through Type Steel Structure Shot Blasting Machine Pass Through Type Steel Structure Shot Blasting Machine
    Model
     Technical Coefficient
    LB15HA LB15HB LB18H LB22H LB30H
    Size of Workpiece being Cleaned  Length mm 6000-12000 6000-12000 6000-12000 6000-12000 6000-12000
     Width mm 1500 1500 1800 2200 3000
     Height mm 2000 2200 2500 2500 3500
     Working Speed m/min 0.5-2 0.5-1.5 0.5-1.5 0.5-2 0.5-1.5
    Impeller Head  Model XQH400 XQH400 XQH400 QH400 QH400
     Quantity 8 12 12 12 12
     Power KW 8*15 12*11 12*15 12*15 12*15
     Pill Impelling
     Volume  kg/min
    8*250 12*220 12*250 12*250 12*250
    Dust Catcher  Model LR-24 LR-32 LR-32 LR-32 LR-48
     Total Wind
     Volume  m3/h
    18000 24000 24000 24000 36000
     Power KW 30 37 37 37 37
     Total Power KW 203 258 288.7 288.7 288.7
     Appearance Dimension
     (Length*Width*Height)mm
    31000*5500*6180 31000*5500*8667 31000*5700*8600 31000*6000*8620 31000*6200*8800
    The technical coefficients of the forms are only for indication. The details of the coefficient are subject to the technical projects.
