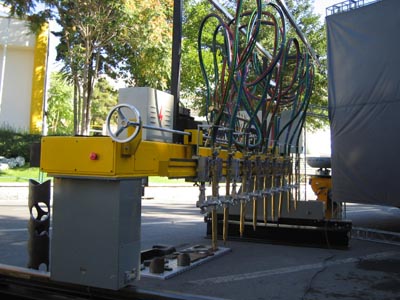

On the base of former numerical control cutting machine, the cutting machines in series add several straight-line cutting troches(according to the user`s requirement) to cut along lengthwise direction. It not only can cut any planimetry-drawing figure, but also can cut several straight plates at the same time. So it has double functions using just single machine.

Rail span: 3m-5m(single side driving)

4m-12m(double side driving)

This series of cutting machine is a high-efficiency oxygen and acetylene(or propane) flame cutting equipment. It has two functions of cutting vertical plates direction. The machine use silicon-controlled DC servo motor to adjust speed. It has a large range to change the speed and was stable and reliable. The driving system adopts DC servo system of modulating pulse width.
