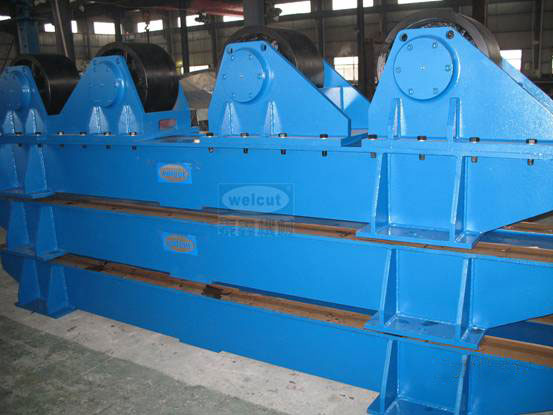

The HGK adjustable turning rolls include one power bed and one idle bed. The turning rolls below 40T adopt helical worm & cycloidal pin wheel decelerator, and over 40T adopt cycloidal pin wheel or helical-worm decelerator.

This series turning rolls adopt screw to adjust, available for changes of workpiece diameter, simple structure and strong drive and glue force.
This wheels are new combination styleone rubber wheel and two steel wheels with big load capacity, big friction, strong drive and glue force.
Imported transducer realized the stepless regulation with wide speed range, high precision and big starting moment.

The control system has the synchronized linkage interface with manipulator and has remote controller, easy and reliable.

Type				HGK-2	GHK-5	HGK-10	HGK-20	HGK-30	HGK-40	HGK-60	HGK-80	HGK-100
Max load weight(T)				2	5	10	20	30	40	60	80	100
Roller assembly	Metallic		Diameter(mm)		244	294	344	344	394	444	494	494
			Width(mm)		16	38	45	50	50	50	60	80
	rubber		Diameter(mm)	200	250	300	350	350	400	450	500	500
			Width(mm)	80	100	120	120	120	120	120	120	120
Cylinder diameter		Min diameter(mm)		150	250	300	500	500	500	500	800	800
		Max diameter(mm)		2000	2800	3200	4500	5000	5000	5000	6000	6000
Motor power(KW)				2*0.18	2*0.37	2*0.55	2*1.1	2*1.1	2*1.5	2*2.2	2*3	2*3
Roller linear speed(m/h)				6-60
Way of setting				AC frequency conversion stepless inverter speed regulation
Type				HGK-100	HGK-160	HGK-200	HGK-250	HGK-300	HGK-500	HGK-800	HGK-1000	HGK-1200
Max load weight(T)				100	160	200	250	300	500	800	1000	1200
Roller assembly	Metallic		Diameter(mm)	500	600	700	700	800	800	900	900	1000
			Width(mm)	200	200	250	250	300	350	400	400	480
Cylinder diameter		Min diameter(mm)		800	800	800	800	800	1000	1000	1000	1000
		Max diameter(mm)		6000	6000	6500	6500	6500	8000	8000	8000	8000
Motor power(KW)				2*3	2*4	2*4	2*5.5	2*5.5	2*7.5	2*11	2*11	2*15
Roller linear speed(m/h)				6-60
Way of setting				AC frequency conversion stepless inverter speed regulation
